Data Quality Rules Engine

1. Overview

The Data Quality Rules Engine is a feature that allows organizations to automate and standardize data quality checks across all assets in the Osprey platform. With a flexible, Python-like expression language, users can define custom rules to monitor data health, catch anomalies, and enforce business standards--ensuring your data is always reliable and actionable.

Key Features:

Custom rule creation using Python-like expressions for maximum flexibility
Asset-level and type-level rule scoping to target specific assets or entire asset types
Inline rule testing and evaluation for rapid development
Rule overrides for asset-specific exceptions
Bulk duplication of rules across many assets
Automated check results with pass, warn, and fail statuses for clear reporting

Use Cases:

Ensuring sensor data completeness and accuracy
Monitoring table row counts or null values
Validating analysis results
Enforcing business logic on any asset type

2. Concepts & Terminology

Understanding the core concepts is key to using the rules engine effectively:

Asset: Any data object in the platform (e.g., tag, table, element attribute, analysis).
Rule: A logical expression that defines a data quality check for an asset.
Rule Scope: Determines if a rule applies to a single asset or all assets of a type.
Check: The result of evaluating a rule against an asset.
Warning vs. Failure: Checks can be configured to warn (non-critical) or fail (critical) when a rule does not pass.
Override: Customizing a type-level rule for a specific asset.
Duplication: Copying an overridden rule to multiple assets for efficiency.

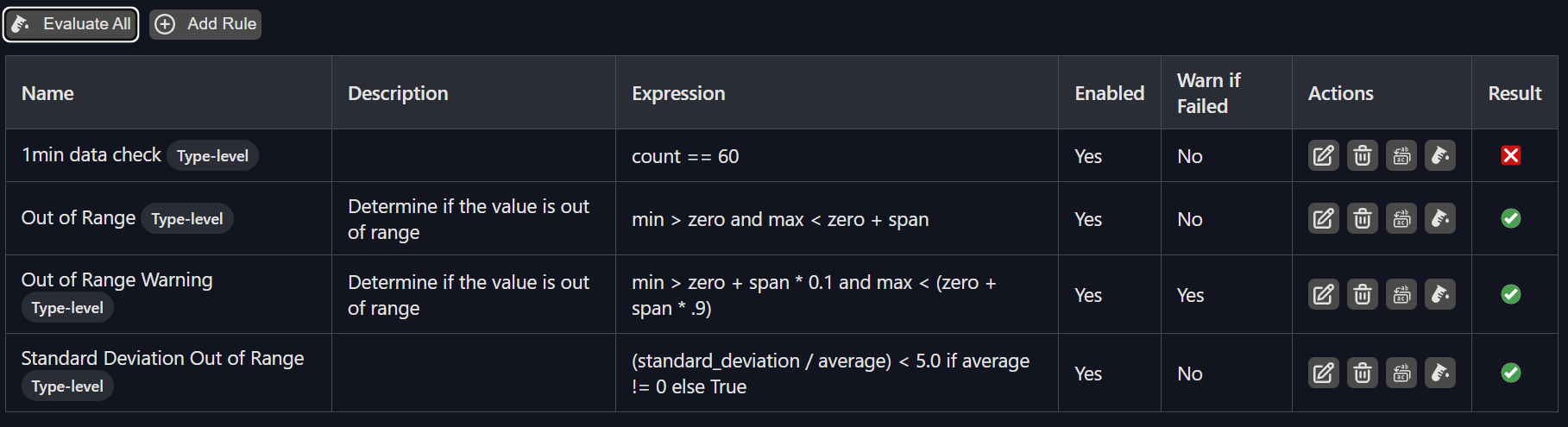

Create custom data quality rules

3. User Guide

This section walks you through using the rules engine in the Osprey UI.

3.1. Accessing the Rules Engine

To get started, navigate to any asset’s page and open the Data Quality Rules tab. Here, you can view, add, or manage rules. Only Domain Admins and Contributors have permission to create, edit, or delete rules.

3.2. Viewing Rules

The rules table lists all rules applicable to the asset, including both type-level and asset-level (overridden) rules. Each rule displays its name, description, expression, status (enabled/disabled), and result (pass/warn/fail) for easy review.

3.3. Creating and Editing Rules

To create a new rule, click Add Rule. Fill in the rule name, description, and expression. Choose the scope (this asset only or all assets of this type), set whether the rule is enabled, and decide if it should warn instead of fail when not passing. Save the rule to apply it.

3.4. Rule Expressions

Rules use a Python-like expression language. Expressions must evaluate to True (pass) or False (fail). Only a safe subset of Python is supported, which means no loops, imports, or assignments.

Allowed Operators:

Arithmetic: +, -, *, /, %, **
Comparison: ==, !=, <, <=, >, >=
Logical: and, or, not
Membership: in, not in
Parentheses for grouping: ( ... )
Conditional expressions: a if condition else b

Parameters Available in Expressions: You can reference any property of the asset as a variable in your rule expression. These parameters are:

Properties Tab: All fields shown in the Properties tab (e.g., status, source_system, data_reference, etc.)
Data Profile Tab: For tags and element attributes, metrics such as percent_good, count, average, min, max, standard_deviation, etc.
Analysis Profile Tab: For analysis assets, fields such as Status, StatusDetail, LastLag, AverageLag, LastTrigger, etc.

Examples:

percent_good > 99 and count > 1000
status == "Good" and average >= 0
time_since_last_scan < 14400 or scan == 0

3.5. Testing and Evaluating Rules

Before saving, use the Evaluate button to test a rule’s expression inline. Use Evaluate All to run all rules for the asset and view results instantly.

3.6. Duplicating Rules

For asset-level or overridden rules (does not work on type-level rules), click Duplicate to other assets. Filter and select target assets (by unique_id or name, regex supported), then confirm to apply the rule to all selected assets.

3.7. Managing Rule Results

The rules table shows the result of each check:

Pass: Rule evaluated to true
Warn: Rule failed but is configured as a warning
Fail: Rule failed and is critical Enable or disable checks as needed.

4. Administration

This section covers permissions, bulk operations, and audit/history features for rules management.

4.1. Rule Management Permissions

Only users with the Domain Admin or Contributor role can create, edit, override, or delete rules.

4.2. Bulk Operations

Use the duplication feature to apply an overridden rule to multiple assets at once. Delete or disable rules in bulk as needed for efficient management.

5. Technical Reference

This section provides technical details for advanced users and integrators.

5.1. Rule Evaluation Engine

Rules are evaluated using a secure Python-like expression evaluator. Only safe operations and functions are allowed. Expressions are evaluated in the context of the asset’s properties and metrics.

5.2. Error Handling

Invalid Expression: If the rule expression is invalid, an error message is shown.
Missing Parameters: If a referenced parameter is not available, the rule will fail.
Permission Denied: Only authorized users can manage rules.

6. Best Practices & FAQ

This section offers tips and answers to common questions.

Writing Effective Rules

Use clear, descriptive names and descriptions for rules. Test expressions before saving. Use type-level rules for consistency, and asset-level overrides for exceptions.

Performance Considerations

Avoid overly complex expressions. Use available parameters efficiently for best performance.

Frequently Asked Questions

Q: Can I use any Python code in rule expressions?
A: No, only a safe subset of Python operators and functions is supported.

Q: How do I know which parameters are available?
A: Refer to the Properties, Data Profile, or Analysis Profile tabs for available fields.

Q: What happens if I override a type-level rule?
A: The asset-level rule takes precedence for that asset. You can revert to the type-level rule by deleting the override.

Q: Can I apply the same rule to many assets?
A: Yes, use the duplication feature to copy an overridden rule to multiple assets of the same type.

Available Properties and Metrics

Below are the properties and metrics available for use in rule expressions. These can be referenced directly by name in your rule logic.

Tag Properties

Property	Example Value
asset_type	Tag
point_source	R
ex_desc
instrument_tag
eng_units	DEG. C
digital_set_name
data_security	piadmin: A(r,w) \| piadmins: A(r,w) \| PIWorld: A(r)
point_security	piadmin: A(r,w) \| piadmins: A(r,w) \| PIWorld: A(r)
location1	0
zero	50
span	200
source_tag
compression_deviation	4
compression_percentage	2
compression_minimum	0
compression_maximum	28800
exception_deviation	2
exception_percentage	1
exception_minimum	0
exception_maximum	600
compressing	1
scan	1
point_type	Float32

Tag Data Profile Metrics

Metric	Example Value
status	Good
is_good	True
tag_is_pt_created	False
tag_does_not_exist	False
tag_is_configure	False
time_since_last_value	14.0
start_time	2025-06-11 17:40:45.120511
end_time	2025-06-11 18:40:45.120511
count	1.0
average	50.4994
min	50.4994
max	50.4994
percent_good	100.0
standard_deviation	0.0

Element Attribute Properties

Property	Example Value
asset_type	ElementAttribute
full_path	\AFSERVER\Terradyne...
attribute_path	\AFSERVER\Terradyne...
parent_element_name	P-30242
parent_element_path	\AFSERVER\Terradyne...
is_manual_data_entry	False
data_reference	PI Point
is_configuration_item	False
is_data_reference_defined_by_template	False
config_string	...

Element Attribute Data Profile Metrics

Metric	Example Value
status	Good
is_good	True
tag_is_pt_created	False
tag_does_not_exist	False
tag_is_configure	False
time_since_last_value	14.0
start_time	2025-06-11 17:43:50.599072
end_time	2025-06-11 18:43:50.599072
average	51.67
min	47.67
max	53.57
percent_good	100.0
standard_deviation	2.04

Analysis Properties

Property	Example Value
asset_type	Analysis
analysis_rule_plugin	PerformanceEquation
categories
time_rule_plugin	Natural
analysis_rule_variable_mapping	...
output_time
analysis_rule_display_string	...
analysis_rule_config_string	...

Analysis Profile Fields

Field	Example Value
Guid	00000000-0000-0000-0000-000000000000
Name	Alarm
Path	Alarm
Status	Running
StatusDetail	None
LastLag	0.0
AverageLag	0.0
LastTrigger	0001-01-01T00:00:00
